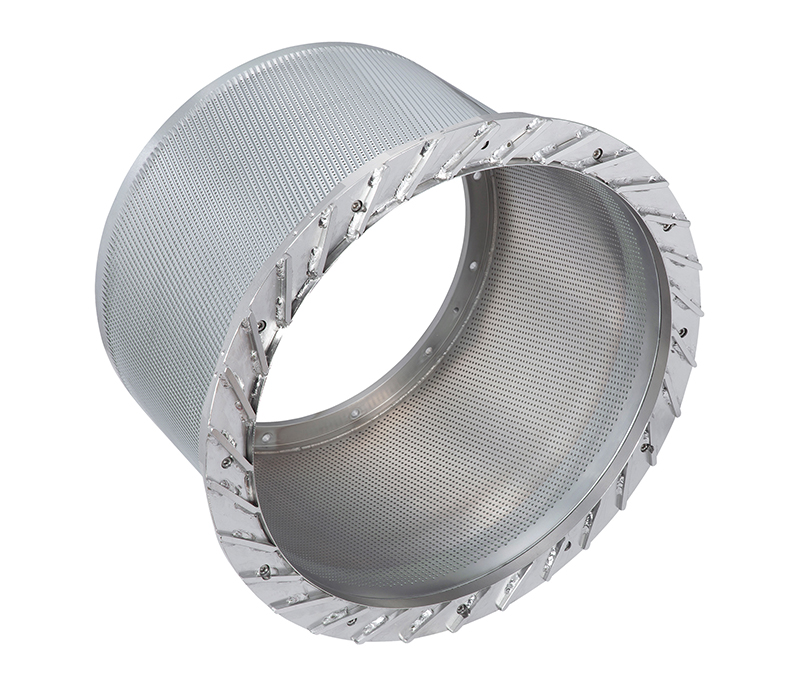

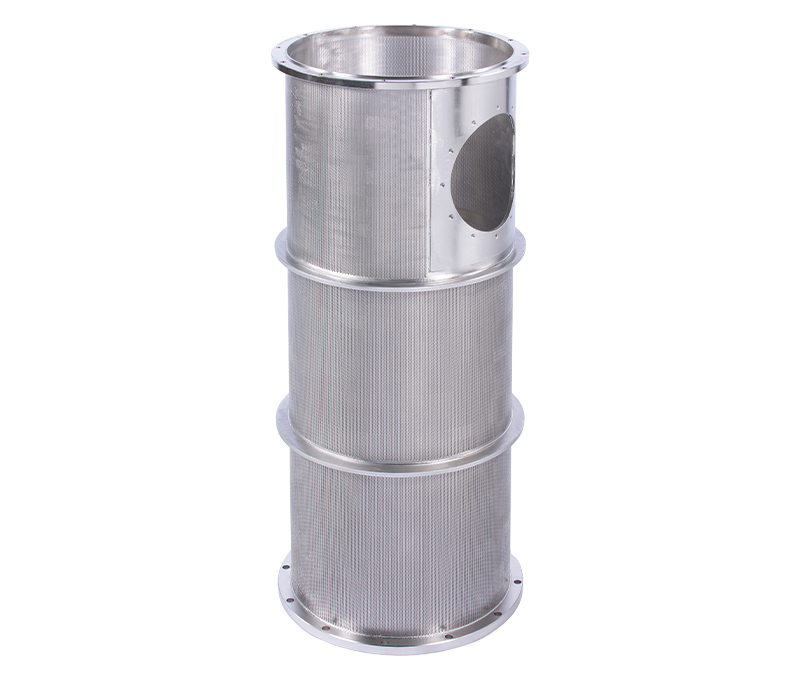

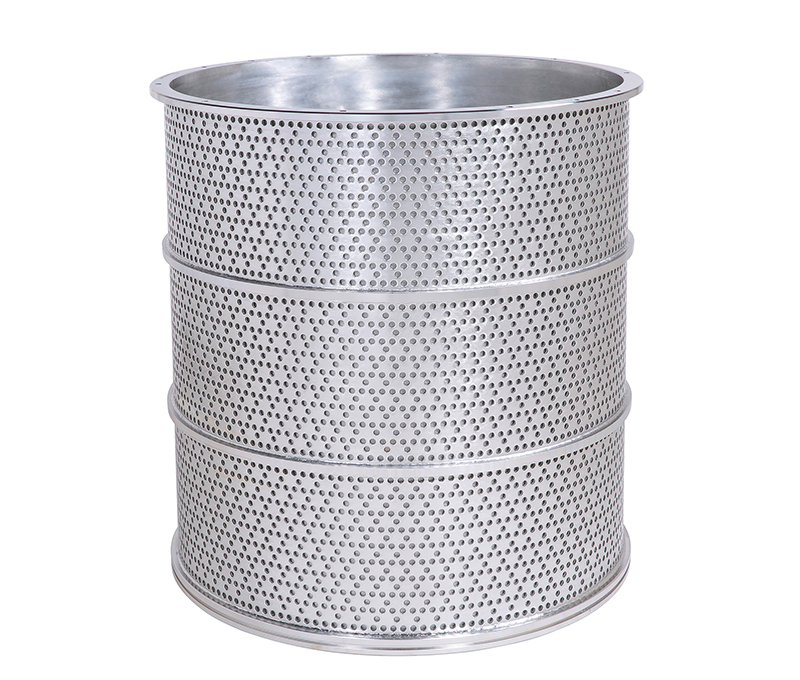

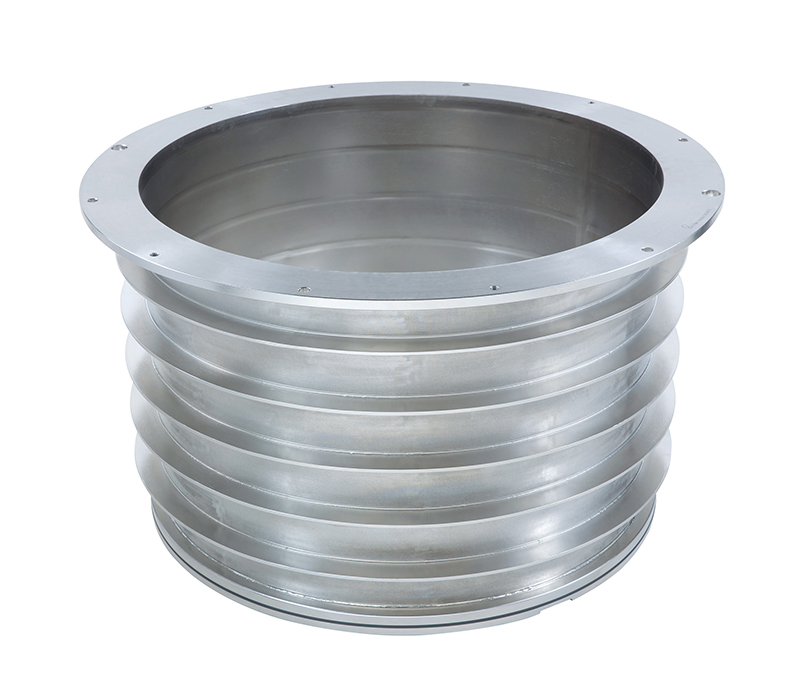

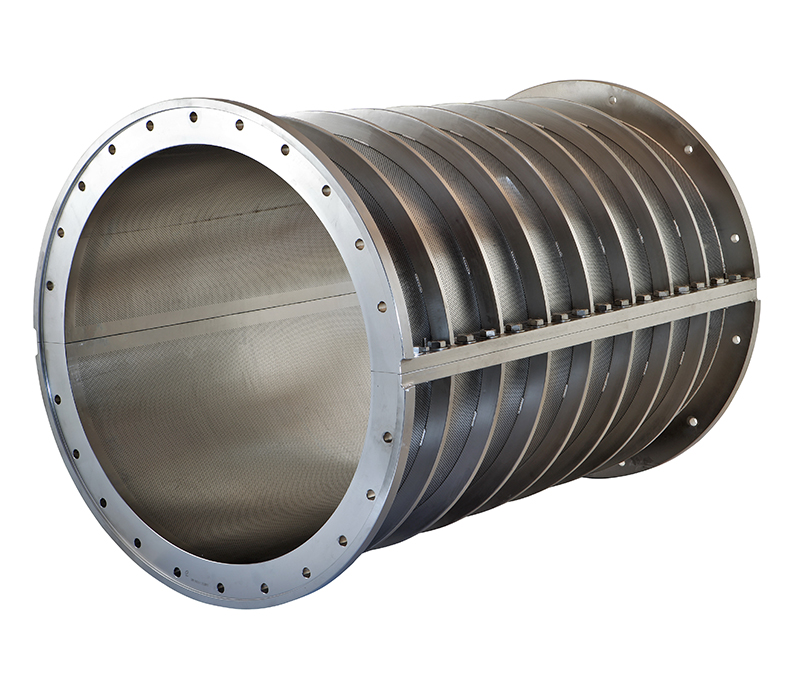

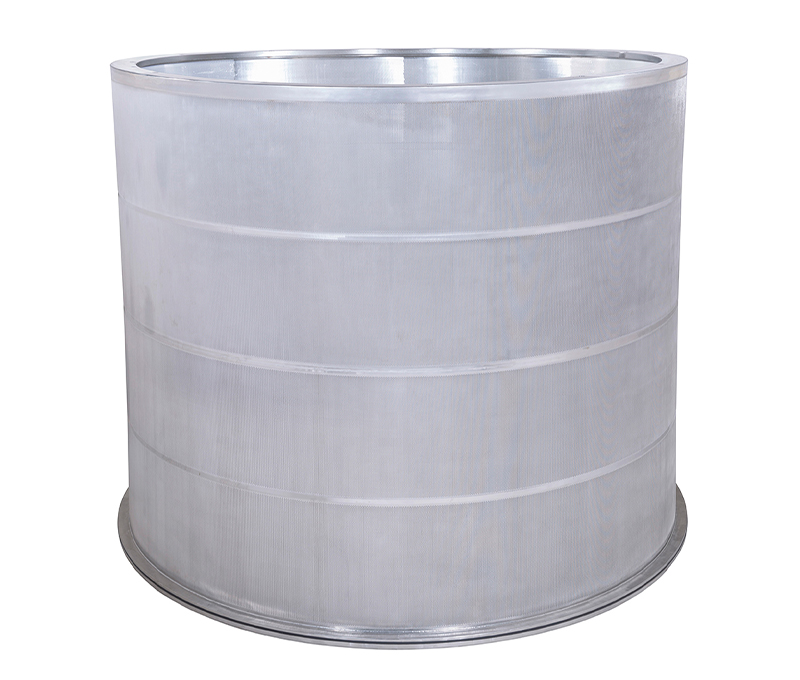

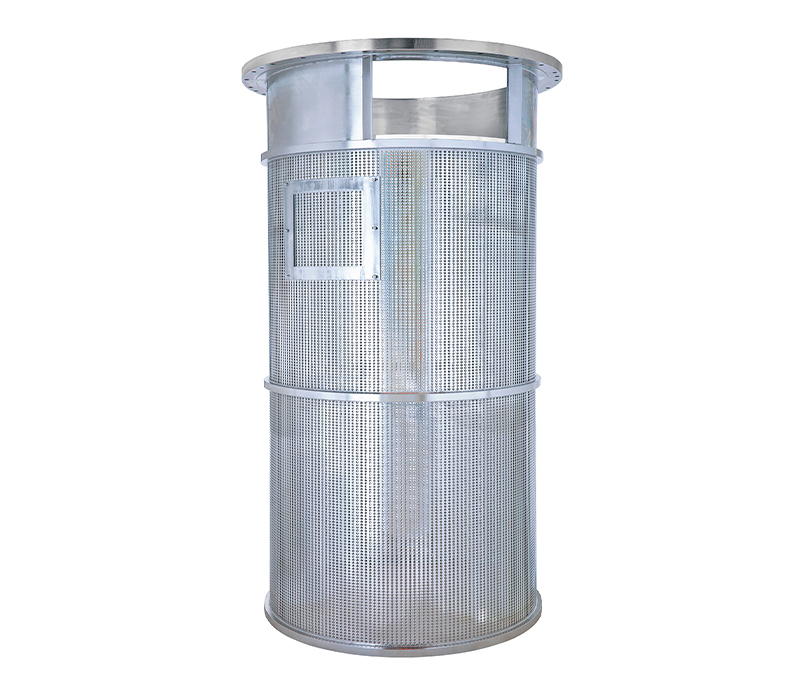

Hole Type Screen

Product Character

Hole type Screen Baskets are essential components for the coarse screening stage in the pulp preparation process, serving as the first line of defense in the entire screening system. Their primary function is to efficiently remove contaminants larger than the screen hole size, such as plastic pieces, stickies, staples, paper clips, sand, and glass. By performing this critical initial purification and screening, the perforated screen protects the subsequent, more delicate fine screening system, thereby maintaining optimal pulp quality and operational stability throughout the production line.

  • Product Advantages
  • Product Specification
  1. Dual Functionality: Provides the dual benefits of pulp cleaning and coarse screening simultaneously, handling and removing large-sized contaminants in a single step.
  2. Wide Aperture Range: The available hole sizes span a broad spectrum, customizable from ultra-fine 0.1mm to coarse 10mm, meeting diverse screening requirements across various pulping stages.
  3. Enhanced Wear Resistance: The surface treatment utilizes German professional electroplating technology, providing superior abrasion resistance that significantly extends the product's operational lifespan.
BRAND TYPE / MODEL
METSO TAS-25 TAS-50 TAS-200 TAS-340
SUNDS D4 SUNDS D8 SUNDS D9 SUNDS D10
F-630D F-1600D F-2000D
FS-90 FS-170 FS-450
KW8 KFA-50
VOITH MSS05/05 MSS06/06 MSS08/05 MSS10/10 MSS12/12 MSS15/15
MS12 MS052
MSW-10 MSW-20 MSW-30 MSW-40 MSW-50
VS-13 VS-21 VS-31
STS-13 STS-23 STS-33D
CSM22
AIKAWA ADS-50 ADS-100 ADS-200
F-400 F-600 F-800 F-1000 F-1200
CVA-300 CVA-500 HS-600
FN-300 FN-500 FN-800 FN-1000 FN-1200 FN-1600
BIRD M-200 M-300 M-400 M-800

BRAND TYPE / MODEL
BLACK
CLAWSON
ULTRA-I ULTRA-II ULTRA-III
UP-1 UP-2 UP-3
8PS 12PS 16PS 24PS 30PS 36PS
8PH 12PH 16PH 24PH 30PH 36PH
V-100 V-200 V-300 V-400 V-500 V-600
BC-PU20 FNC5
ANDRITZ FH-300 FH-500 FH-600 FH-800 FH-1000
F0 F2 F3 F4 F5
F2F F2T F20 F60 F80
HB1 HB3 HB4.5 HB5 HB6
WSTO-PS078 M45 AHLSTROM FTK6
SATOMI FN-300 FN-500 FN-800 FN-1000 FN-1200 FN-1600
IMPCO HO-210 HO-212 HO-312
GPP-140 GPP-550 GPP-1100
BELOIT S-12A S-24A S-32A S-48A
MR-18 MR-48
