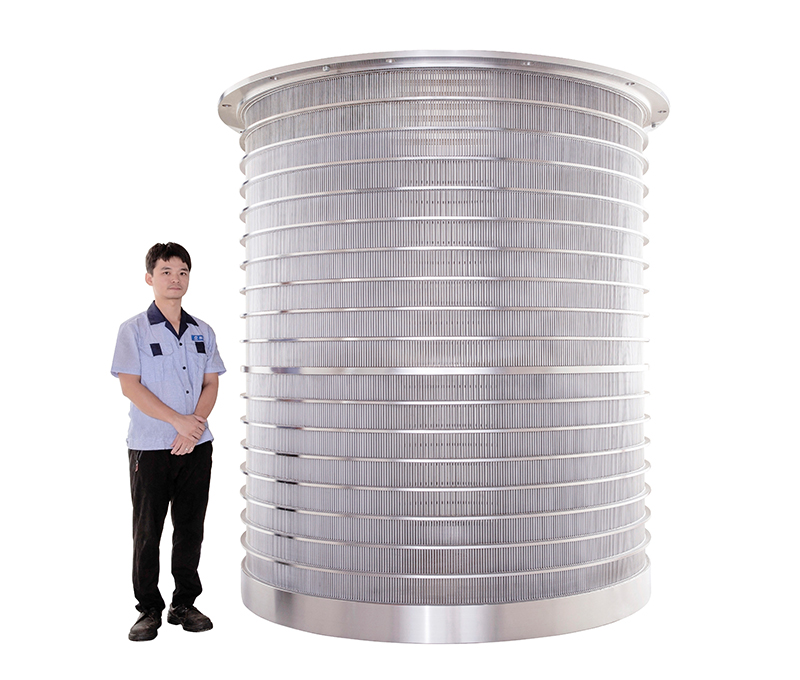

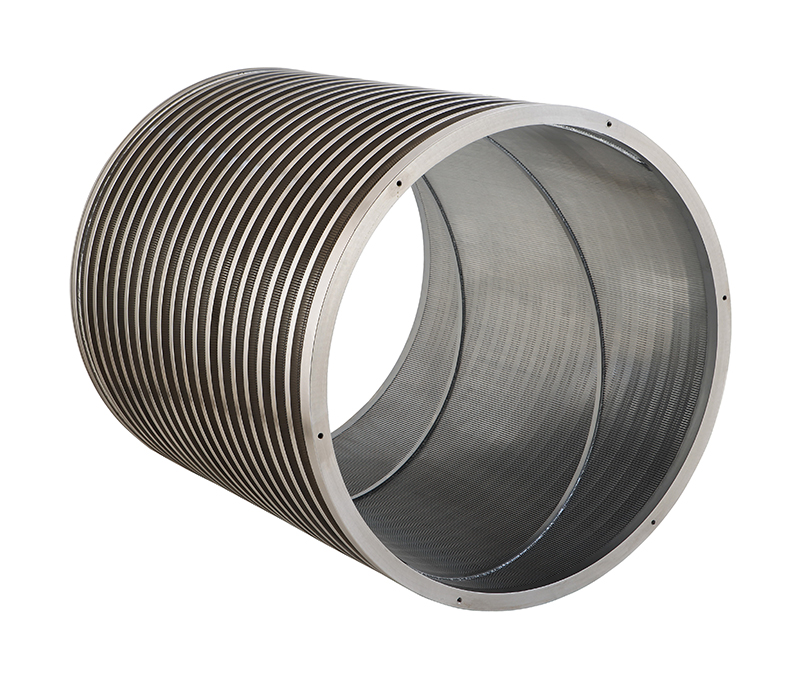

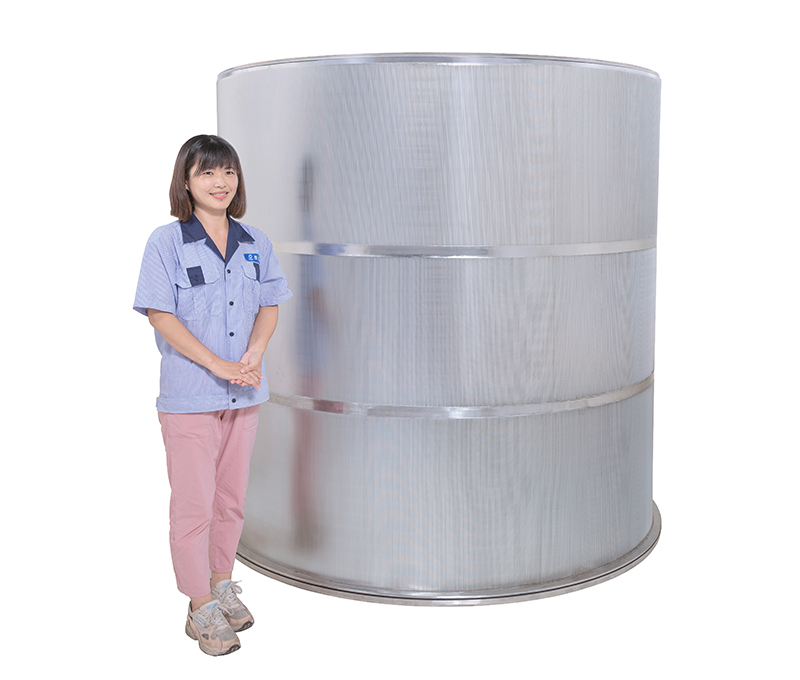

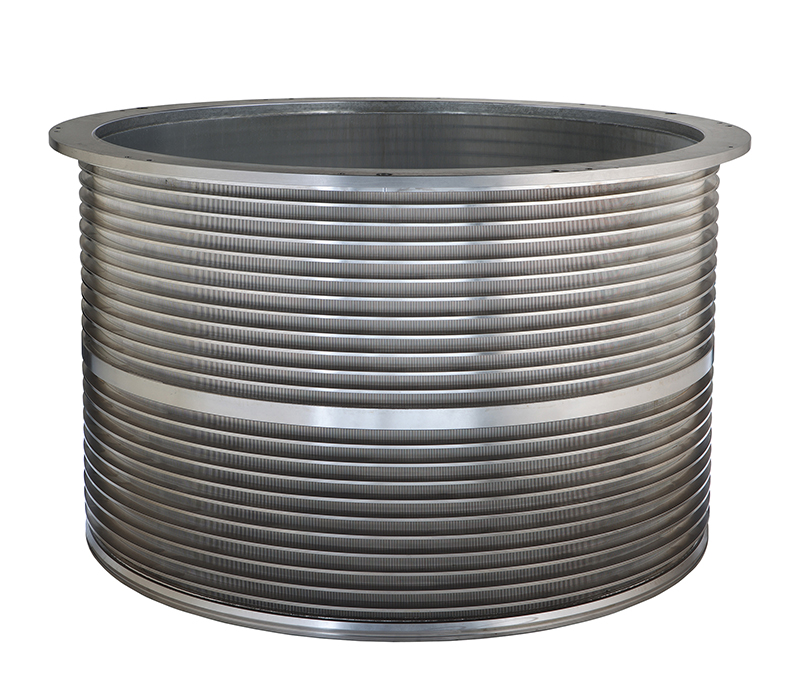

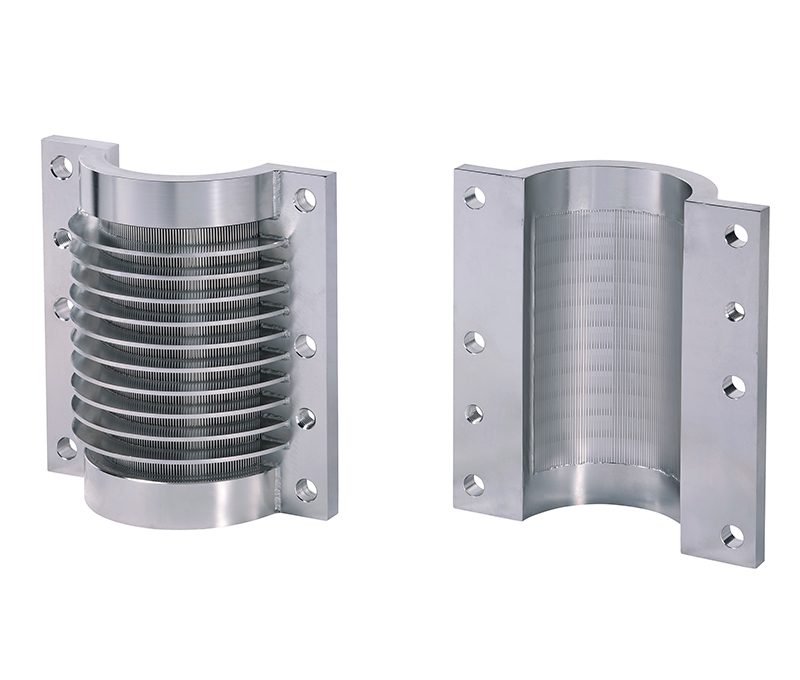

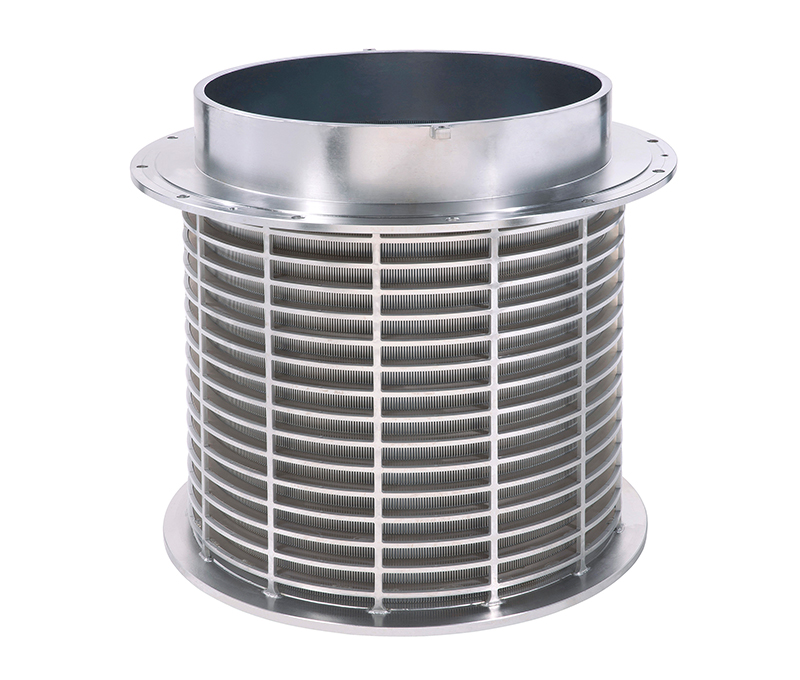

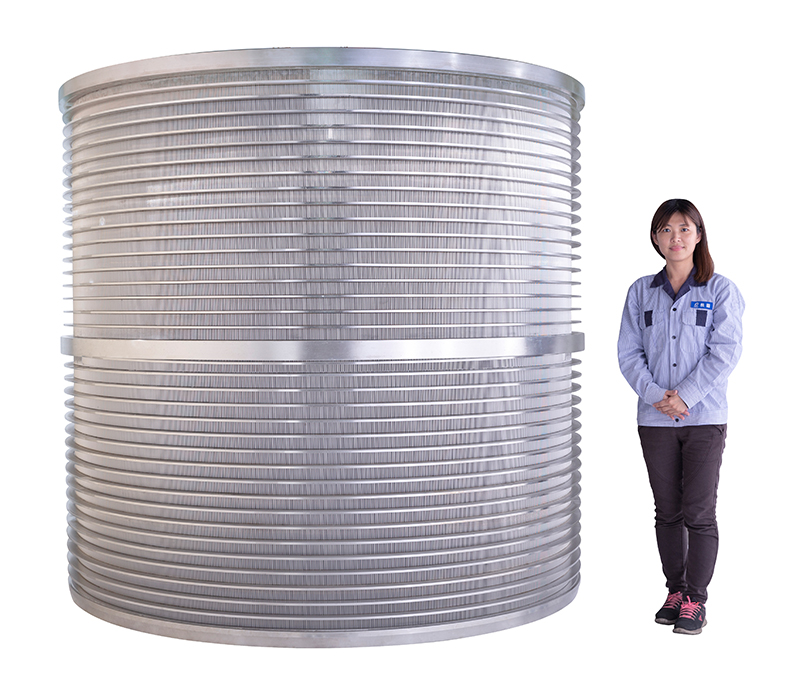

Bar Type Screen

Product Character

The BAR type screen is a critical component specifically engineered for the screening and fractionation stages within the paper stock preparation process. Primarily utilized in Pressure Screens for fine screening, its core function is the precise removal of microscopic contaminants larger than the slot size—such as stickies, dirt specks, and sand particles—from the pulp slurry. The selection of the screen slot size is crucial for screening efficiency; specifically, the 0.13mm to 0.2 mm range significantly impacts stickies removal rates. For high-purity processes like de-inking, fine slot sizes of 0.15mm or smaller are required.

Inquery

Product Advantages
Product Specification

Ultimate Precision Slot Control: Over 80% of the fine screen slot sizes are controlled within a tolerance of ±0.01mm. This ensures superior dimensional accuracy and stability, delivering consistently reliable filtration performance.
Superior High Open Area: A high open area ratio significantly increases the effective filtration surface, boosting pulp throughput. This translates directly to energy savings and lower operational costs.
Enhanced Wear Resistance and Longevity: The surface treatment utilizes German professional electroplating technology, providing exceptional abrasion resistance. This dramatically extends the product's service life, reducing replacement frequency.
High Consistency Operation Capability: The screen permits stable operation at higher pulp consistencies. This helps minimize screen clogging, consequently reducing the amount of dilution water required and boosting overall production efficiency.

BRAND	TYPE / MODEL
METSO	TAS-25	TAS-50	TAS-200	TAS-340
	SUNDS D4	SUNDS D8	SUNDS D9	SUNDS D10
	F-630D	F-1600D	F-2000D
	FS-90	FS-170	FS-450
	KW8	KFA-50
VOITH	MSS05/05	MSS06/06	MSS08/05	MSS10/10	MSS12/12	MSS15/15
	MS12	MS052
	MSW-10	MSW-20	MSW-30	MSW-40	MSW-50
	VS-13	VS-21	VS-31
	STS-13	STS-23
	CSM22
AIKAWA	ADS-50	ADS-100	ADS-200
	F-400	F-600	F-800	F-1000	F-1200
	CVA-300	CVA-500	HS-600
	FH-300	FH-500	FH-800	FH-1000	FH-1200	FH-1600
BIRD	M-200	M-300	M-400	M-800

BRAND	TYPE / MODEL
BLACK CLAWSON	ULTRA-I	ULTRA-II	ULTRA-III
	UP-1	UP-2	UP-3
	8PS	12PS	16PS	24PS	30PS	36PS
	8PH	12PH	16PH	24PH	30PH	36PH
	V-100	V-200	V-300	V-400	V-500	V-600
	BC-PU20	FNC5
ANDRITZ	F0	F2	F3	F4	F5
	F2F	F2T	F20	F60	F80
	HB1	HB3	HB4.5	HB5	HB6
	WSTO-PS078		M45 AHLSTROM
SATOMI	FN-300	FN-500	FN-800	FN-1000	FN-1200	FN-1600
IMPCO	HO-210	HO-212	HO-312
	GPP-140	GPP-550	GPP-1100
	S-12A	S-24A	S-32A	S-48A
BELOIT	MR-18	MR-48
